Create Properties

Admins can create Properties from the Data Capture page of Process Library (SaaS)

Properties are used to add more information to a Process Map, Activity or Deliverable. This enables you to create a map which can be understood 'at a glance' while not leaving any important information out. This information can range from the map author to who is responsible for an activity being carried out to data such as an address or bank details and anything in between.

As standard, only Admins can create Properties.

To create a Property go to the Data Capture page in the Admin section of Process Library (SaaS):

  • If you are in the Library section of Process Library (SaaS) click the Admin button at the top right of the screen.
    Untitled design - 2023-04-14T110702.507
  • To return to the Library click the Library button at the top right of the screen.
    Untitled design - 2023-04-14T111204.708
  • Click on the Data Capture menu option in the Admin section of the menu on the left hand side of your screen. From here you can create; Process Map, Activity and Deliverable Properties, the process is the same for each Property.

Data Capture

  • To add a Property, click on the type of Property you would like to add from the menu.
    Untitled design - 2023-03-24T114940.491

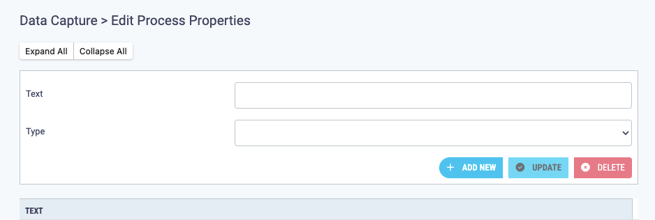

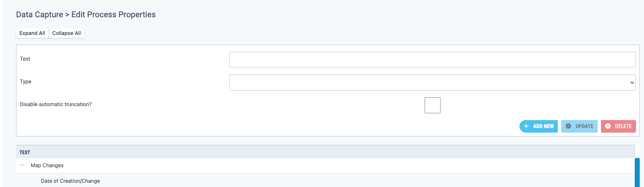

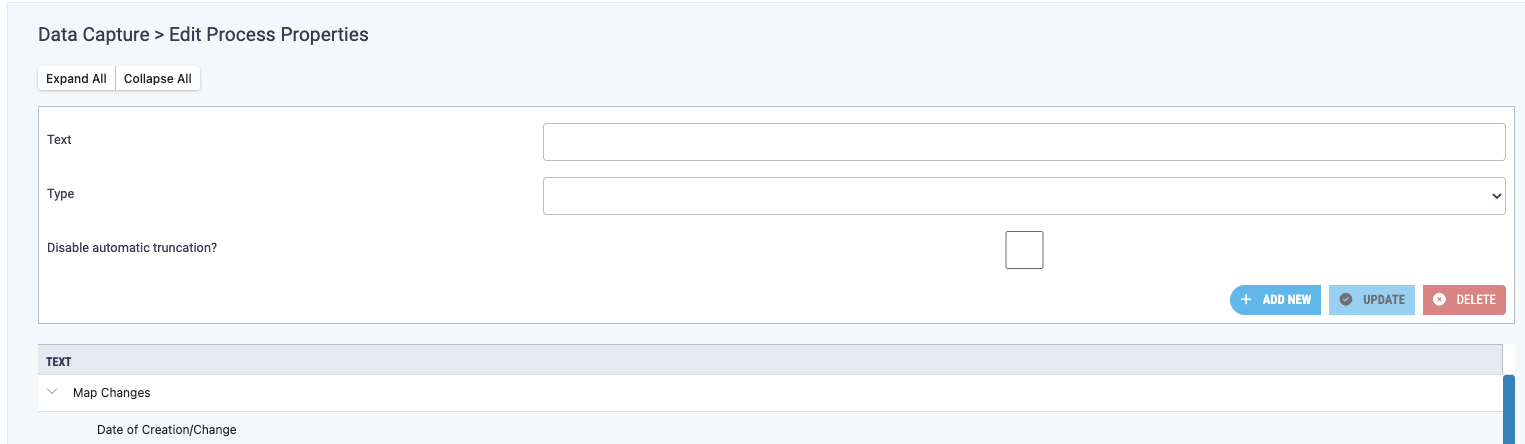

  • You will be taken to the 'Property Editing Screen', you can add a new Property in the box in the right hand side of the screen.
    Screenshot 2023-06-13 at 15.23.11

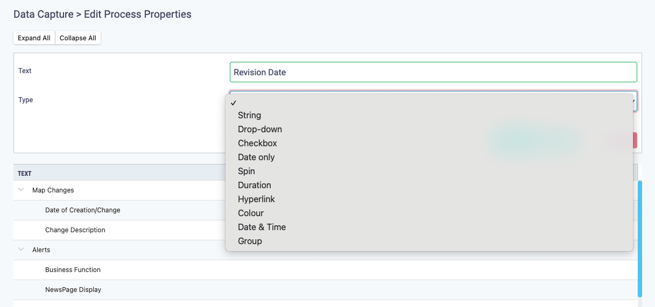

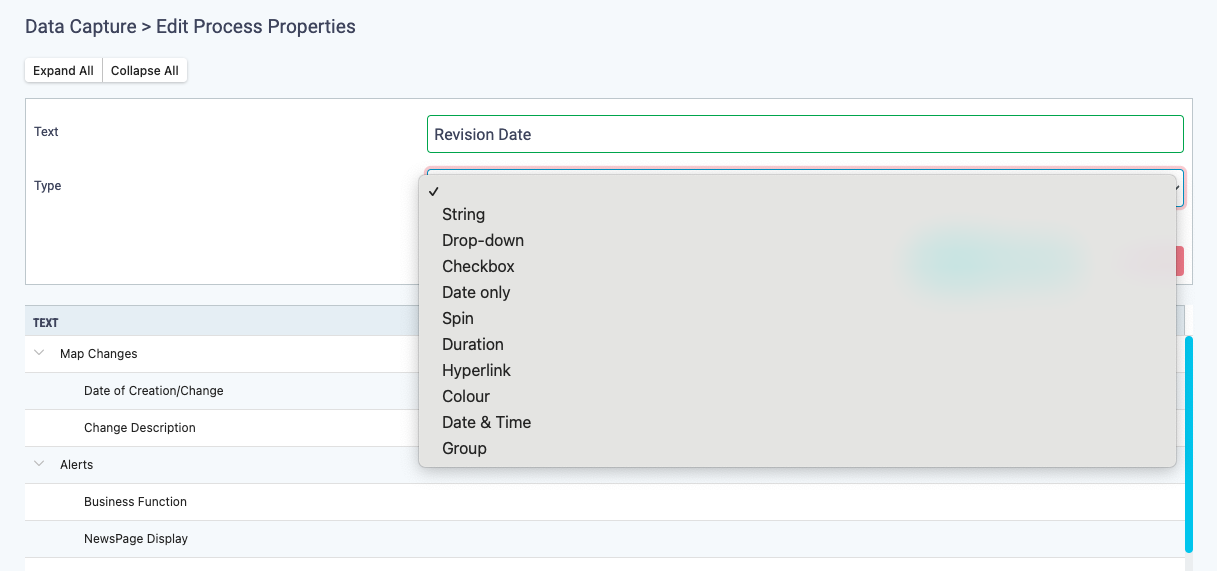

  • Type the name of the property into the 'Text' field, then select the Property Type from the dropdown.
    Screenshot 2023-03-24 at 15.19.23
  • The Property Types are:
    • String - a free text field
    • Drop-down - a dropdown list, this can be populated with an Answer Set
    • Checkbox - a single box to be checked or unchecked
    • Date only - a date to be selected from a dropdown calendar
    • Spin - a single number which can be increased or decreased using arrows
    • Duration - a set of three numbers to represent hours, minutes and seconds which can be increased or decreased using arrows
    • Hyperlink - a link to resources inside or outside Process Library (SaaS)
    • Colour - a colour pallet which can be updated using a colour selector, RGB or HEX values
    • Date & Time - a date and time to be selected from a dropdown calendar and clock
    • Group - a group of Properties, this is similar to creating a folder of similar Properties

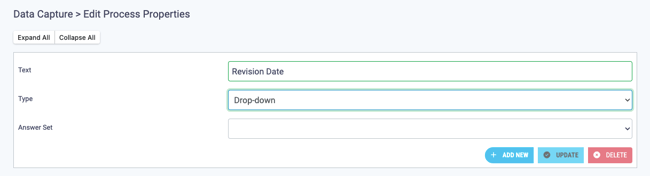

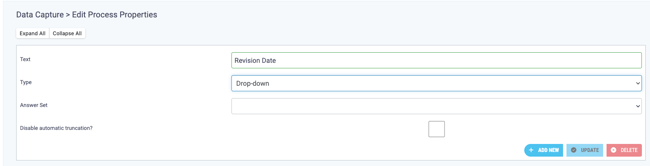

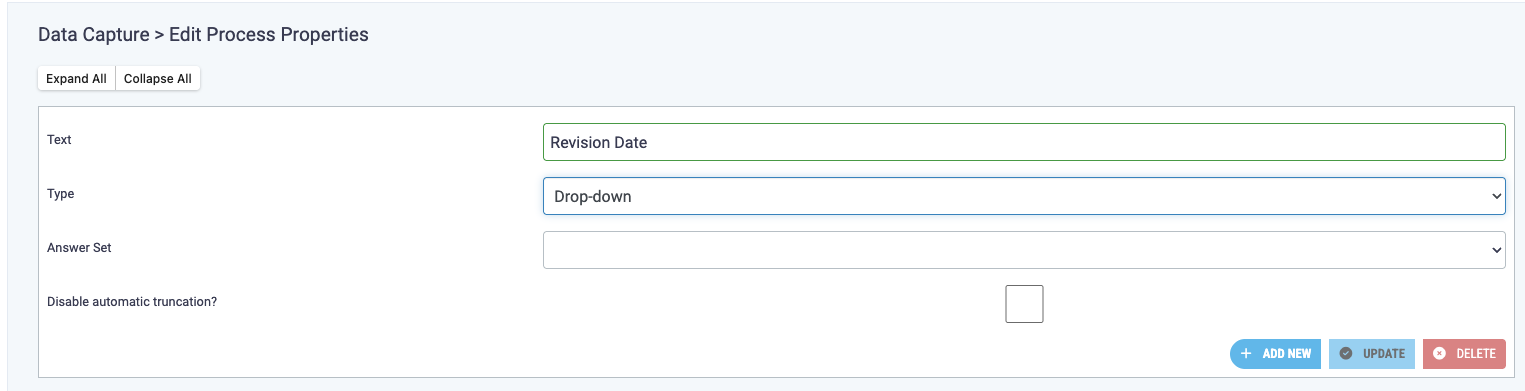

  • If you have selected Drop-down then a third Answer Set box will appear, choose the relevant Answer Set from the drop-down list.
If you do not have an appropriate Answer Set you can create one

Screenshot 2023-03-24 at 15.22.11

An Answer Set is a list of potential Property values which can be used in the Drop-down field for all relevant Properties to stop you from needing to fill in the same values again and again. For example, 'Process Map - Author' would contain the names of everyone in your organisation with permission to create Process Maps.

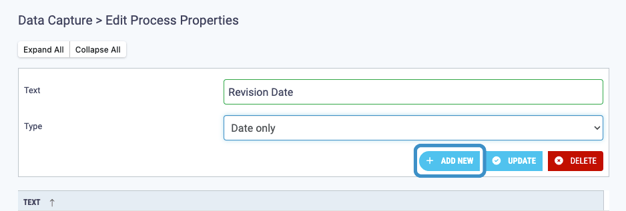

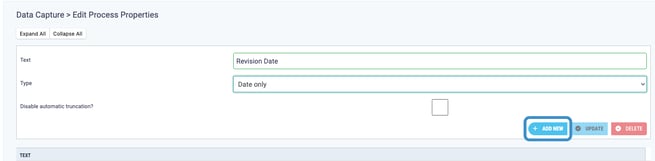

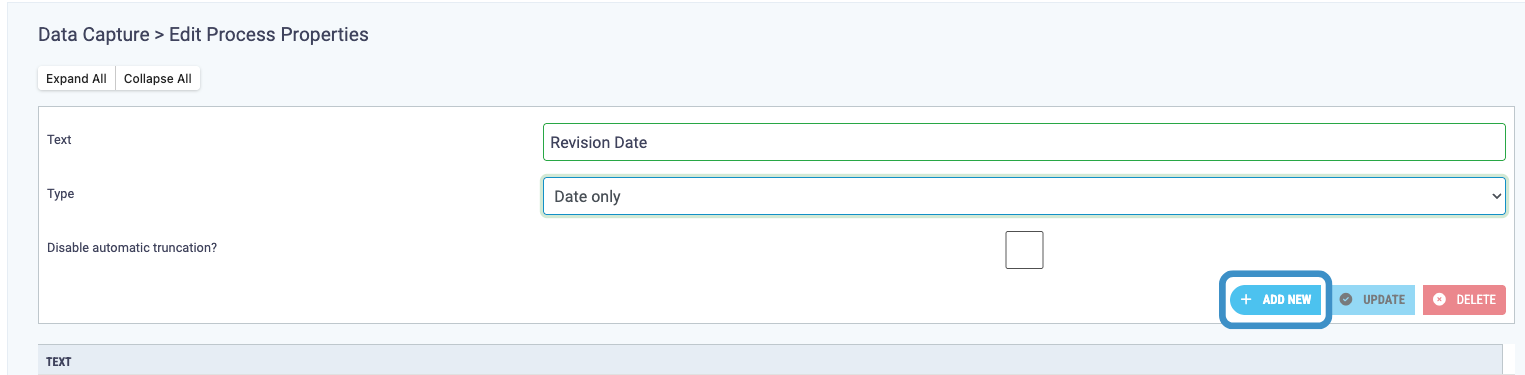

  • Once you have filled in each field click on the Add New button to add your new Property.
    Untitled design - 2023-03-24T153930.447

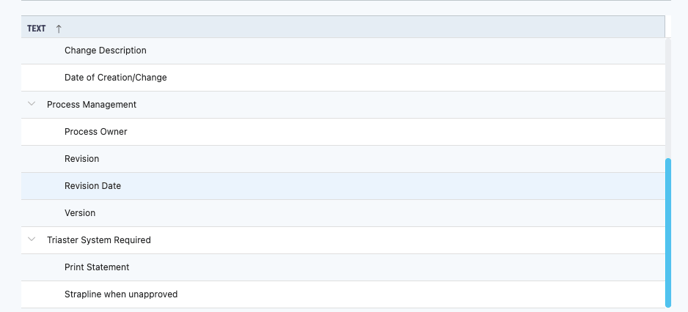

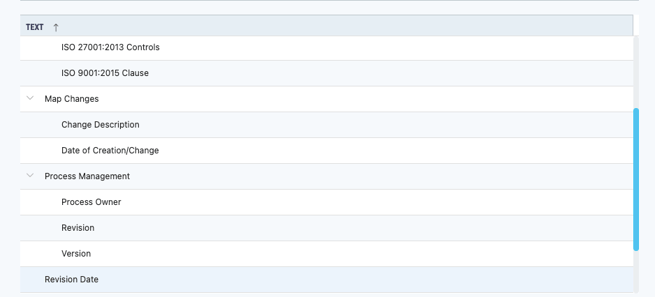

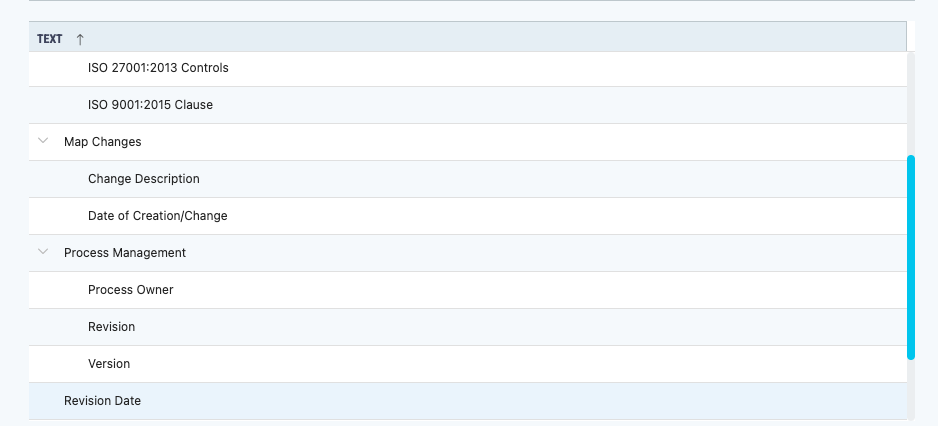

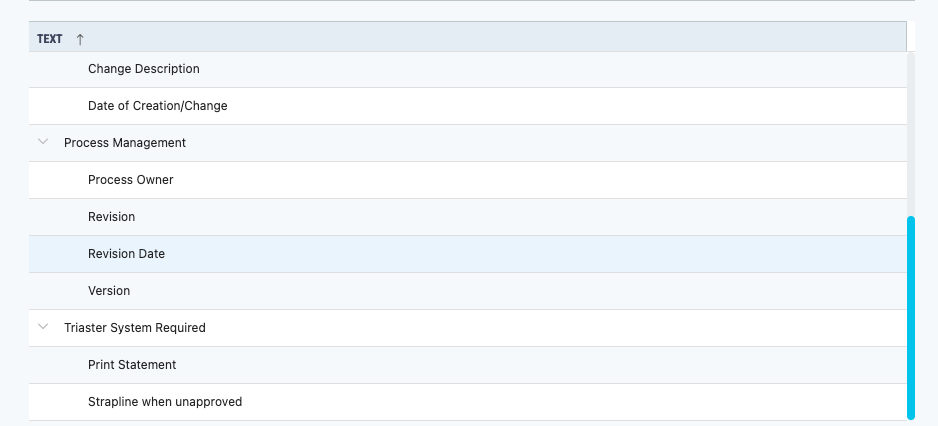

  • You will be taken back to the list of Properties and your new Property will be among the Properties listed.
    Properties list-1

If you are adding several Properties at once you will need to type over the existing text from the last Property added, this will not erase the existing Property as long as you click Add New and not Update.
